2.4GHz 12 dBI Beam Antenna

2.4GHz 12 dBi CP Beam Antenna

PRODUCT DETAILS:

  • 2.4GHz, 12dBi CP Beam Antenna with threaded mounting bloc.
  • 12 dBi of gain, significantly increasing useable range both indoors and outdoors.
  • Circularly polarized element reduces signal dropouts and improves link quality.
  • Durable, protective ABS element enclosure. Includes mounting block with 1/4-20 in., 3/8-16 in., or 5/8-27 in. threads.

** Not available in CE compliant countries

Categories: , , SKU: PAN-CP24

Description

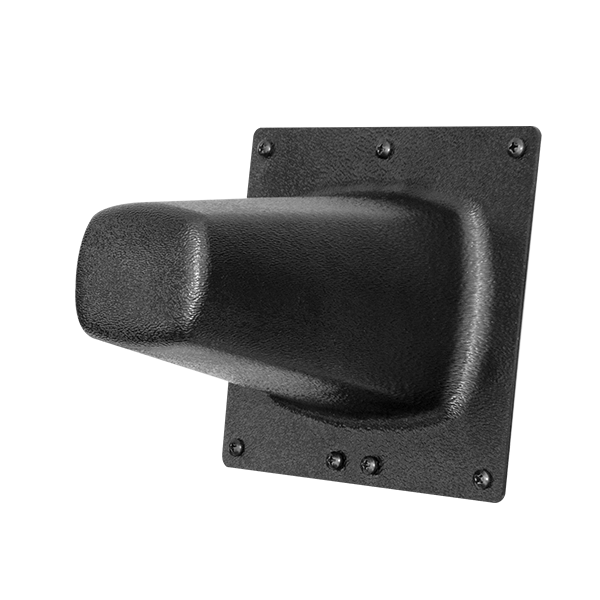

2.4GHz, 12 dBi Circularly Polarized (CP) Beam directional antenna protected by a durable ABS enclosure. Utilizes a female N-Type connector and multi-threaded mounting block. For use ONLY with 2.4GHz (Tempest2400 or CrewCom) Products.

**Not available in CE compliant countries

Data Sheet:

Additional information

Specs

Bandwidth 200MHz, Impedance 50O, Average Return Loss -14.3 dBm, Pattern Type Beam, Polarization RHCP, Gain 12 dBi, Length 7.99 in. (203 mm), Height 5.98 in. (152 mm), Weight 0.74 lb (340 g), Mount Threads 1/4-20 in., 3/8-16 in., or 5/8-27 in., Color Black, Connector N female
